Mini Excavators

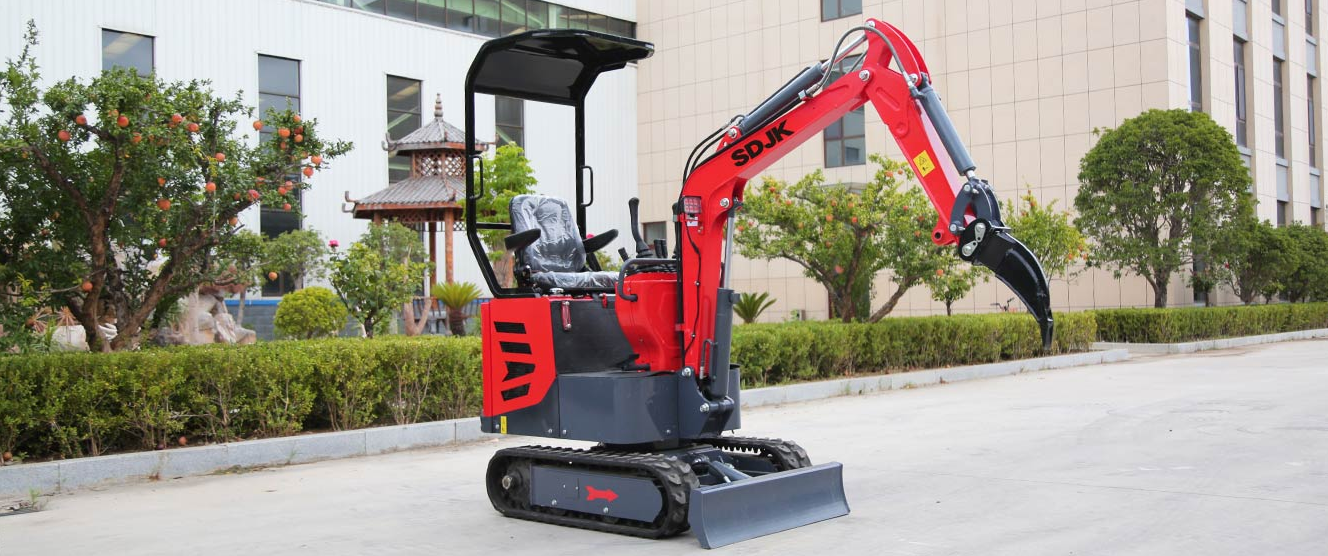

JKW-10 MINI EXCAVATOR

  • Operating Weight
    1000kg
  • Max. digging depth
    1760mm
  • Power
    10HP
  • Machine Video

  • Request a quote
JKW-10 MINI EXCAVATOR

version and dispaly

Specifications for JKW-10 MINI EXCAVATOR

none

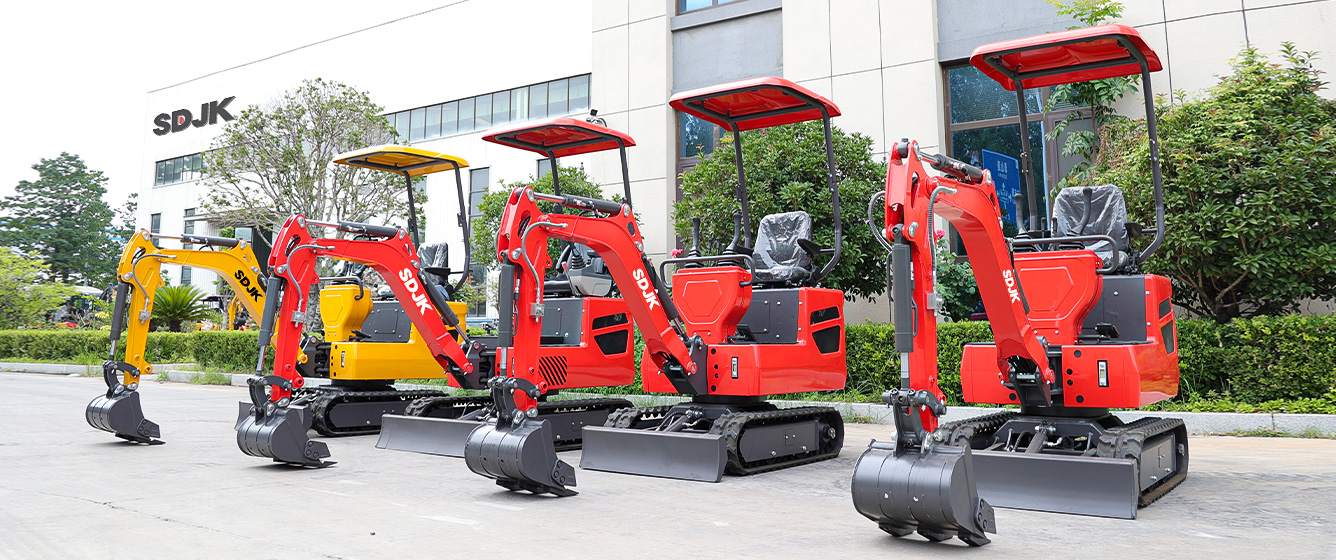

About excavator


SDJK is a manufacturer specializing in small excavators in China, which can meet customers' customization needs (supporting customization of engines, logos and body colors). At present, the use of small excavators is becoming more and more routine. Self built houses, farm planting, timber transportation, sewage systems, etc. can be equipped with different accessories to cope with different operation modes and save labor costs. The mini excavator we produce is a machine that can work in a narrow space. Compared with the expensive rental cost, it is more cost-effective to have a excavator made in China.


none


Details of excavator


The excavator has the advantages of flexibility, convenient transition, low cost, low fuel consumption and less damage to the surface. In addition, excavators can also be miniaturized and giant, and have been developing in the direction of high performance, high reliability, multi-function, humanization, environmental adaptability, and energy diversity.

  • Dashboard Dashboard
  • Bulldozer-blade Bulldozer-blade
  • Comfort-seats Comfort-seats
  • Safety-buckle Safety-buckle
  • Brand-accessories Brand-accessories
  • 6-Joystick 6-Joystick
about Accessories
  • Rake Rake
  • Ripper Ripper
  • Wide-dipper Wide-dipper
  • Auger Auger
  • Thumb-clip Thumb-clip
  • Log-Grapple Log-Grapple
  • Quick-Hitch Quick-Hitch
  • Tilting-bucket Tilting-bucket
  • Narrow-bucket-30cm Narrow-bucket-30cm
  • Narrow-bucket-20cm Narrow-bucket-20cm
    Slide To See MORE

    JKW-10 Specifications

    Chassis Width

    570mm

    Track Length

    1200mm

    Chassis Ground Clearance

    365mm

    Gradeability

    30°

    Track Width

    180mm

    Volume Of Fuel Tank

    1.65L

    Transport Length

    2870mm

    Excavator Height

    2213mm

    Overall Dimension

    2870 x 930 x 2213mm

    Engine Model

    KOOP 192/BRIGGS & STRATTON

    Engine Power

    7.6 kw /3000 rpm;10kw/420cc

    Turning Radius

    1490mm

    Max. Digging Height

    2450mm

    Max. Dumping Height

    1710mm

    Max. Digging Depth

    1760mm

    Max. Digging Radius

    3030mm

    Max. Vertical Digging Depth

    1690mm

    Bucket Excavating Force

    6.5KN

    Operating Weight

    1000kg
