Home >Products>Mini Excavators
Mini Excavators

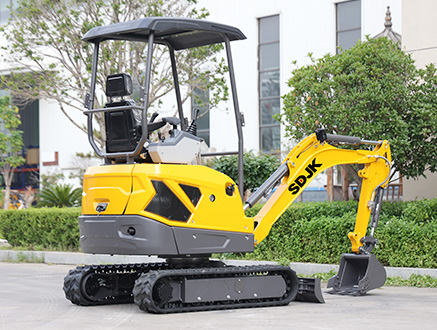

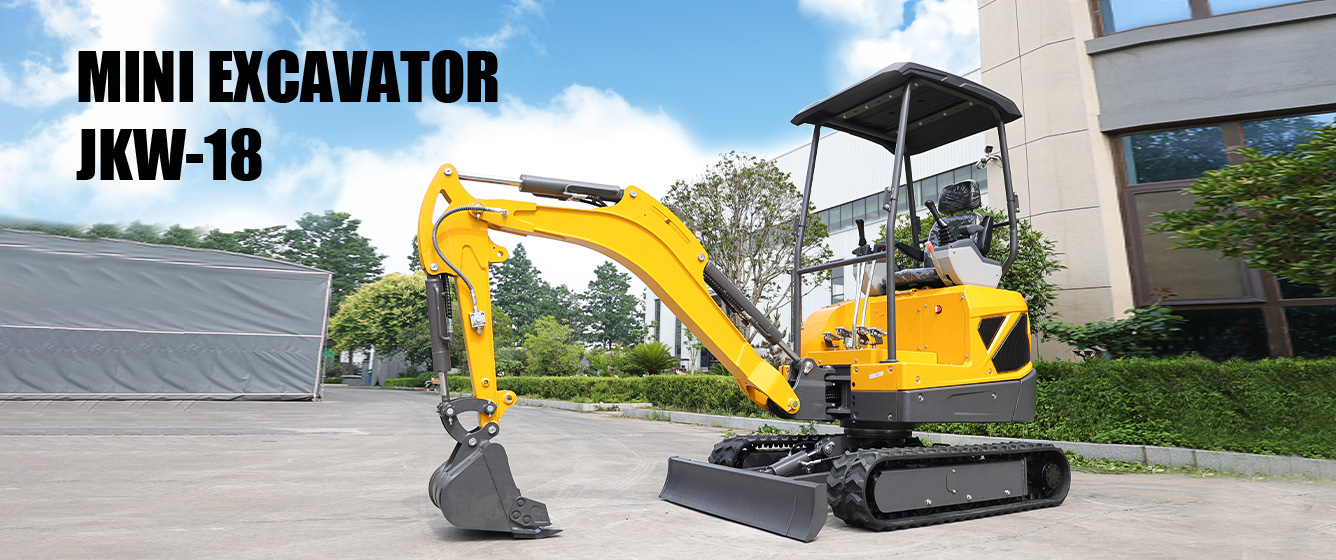

JKW-18. MINI EXCAVATOR

  • Operating Weight
    1800kg
  • Max. digging depth
    2150mm
  • Power
    30HP
  • Machine Video

  • Request a quote
JKW-18. MINI EXCAVATOR

version and dispaly

Specifications for JKW-18. MINI EXCAVATOR

none


About excavator


SDJK is a manufacturer specializing in small excavators in China, which can meet customers' customization needs (supporting customization of engines, logos and body colors). At present, the use of small excavators is becoming more and more routine. Self built houses, farm planting, timber transportation, sewage systems, etc. can be equipped with different accessories to cope with different operation modes and save labor costs. The mini excavator we produce is a machine that can work in a narrow space. Compared with the expensive rental cost, it is more cost-effective to have a excavator made in China.


none


Details of excavator


The excavator has the advantages of flexibility, convenient transition, low cost, low fuel consumption and less damage to the surface. In addition, excavators can also be miniaturized and giant, and have been developing in the direction of high performance, high reliability, multi-function, humanization, environmental adaptability, and energy diversity.

  • 1-Hydraulic-cylinder 1-Hydraulic-cylinder
  • 2-Rubber-track 2-Rubber-track
  • 3-Boom-side-sway 3-Boom-side-sway

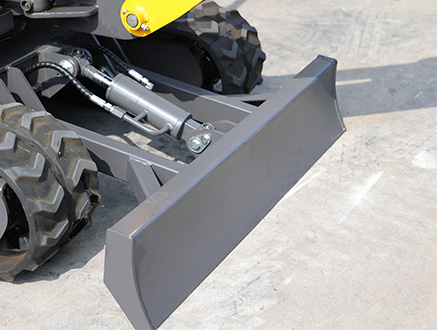

  • 4-Bulldozer-blade 4-Bulldozer-blade
  • 5-Comfortable-cab 5-Comfortable-cab
  • 6-Brand-hydraulic-pipe 6-Brand-hydraulic-pipe
about Accessories
  • Rake Rake
  • Ripper Ripper
  • Wide-dipper Wide-dipper
  • Auger Auger
  • Thumb-clip Thumb-clip
  • Log-Grapple Log-Grapple
  • Quick-Hitch Quick-Hitch
  • Tilting-bucket Tilting-bucket
  • Narrow-bucket-30cm Narrow-bucket-30cm
  • Narrow-bucket-20cm Narrow-bucket-20cm
    Slide To See MORE

    JKW-18 Specifications

    Complete Machine Width

    1170mm

    Track Total Length

    1500mm

    Pole Digging Force

    9.5KN

    Bucket Digging Force

    15.5KN

    Climbing Ability

    30°

    The Whole Vehicle Height

    2200mm

    Overall Dimension

    2950*1180*2200mm

    Engine Model

    CHANGCHAI 390

    Power

    22kw/2200rpm

    Turning Radius

    1390mm

    Excavation Height

    50%0mm

    Unloading Height

    1950mm

    Excavation Deep

    2150mm

    Ground Excavation Diameter

    2500mm

    Vertical Excavation Depth

    1520mm

    Operating Weight

    1800kg
