Mini Excavators

JKW-20S MINI EXCAVATOR

  • Operating Weight
    2000kg
  • Max. digging depth
    2310mm
  • Power
    14HP
  • Machine Video

  • Request a quote

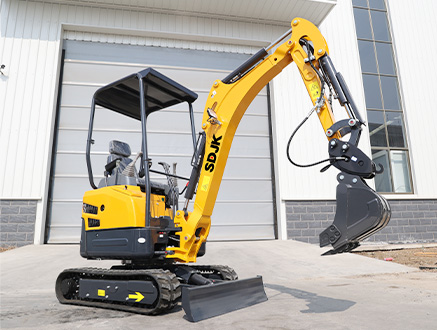

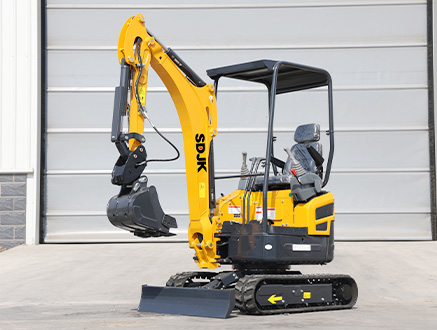

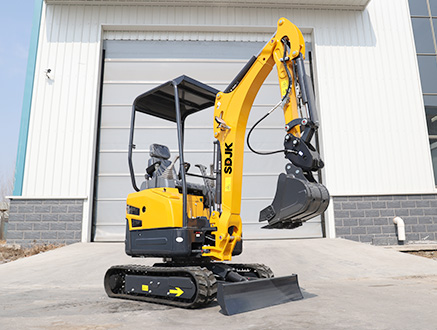

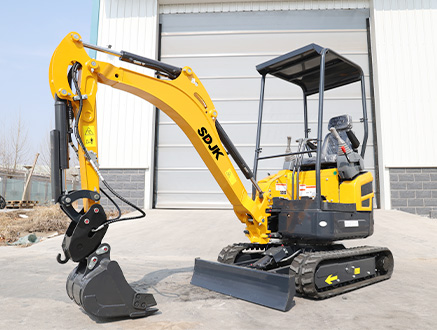

JKW-20S MINI EXCAVATOR

version and dispaly

Specifications for JKW-20S MINI EXCAVATOR

none


About excavator


SDJK is a manufacturer specializing in small excavators in China, which can meet customers' customization needs (supporting customization of engines, logos and body colors). At present, the use of small excavators is becoming more and more routine. Self built houses, farm planting, timber transportation, sewage systems, etc. can be equipped with different accessories to cope with different operation modes and save labor costs. The mini excavator we produce is a machine that can work in a narrow space. Compared with the expensive rental cost, it is more cost-effective to have a excavator made in China.


none


Details of excavator


The excavator has the advantages of flexibility, convenient transition, low cost, low fuel consumption and less damage to the surface. In addition, excavators can also be miniaturized and giant, and have been developing in the direction of high performance, high reliability, multi-function, humanization, environmental adaptability, and energy diversity.

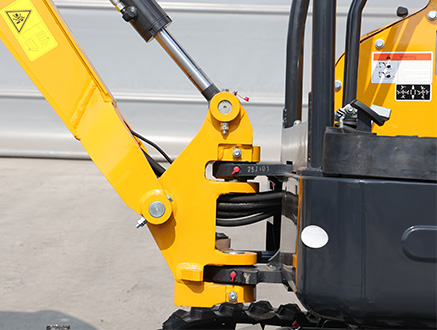

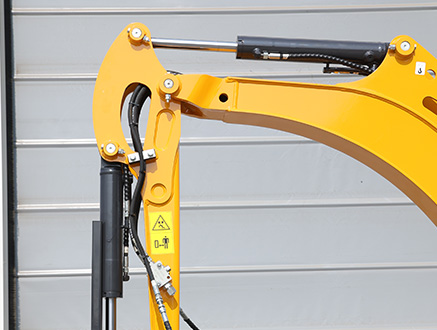

  • Hydraulic-cylinder Hydraulic-cylinder
  • Engine-compartment Engine-compartment

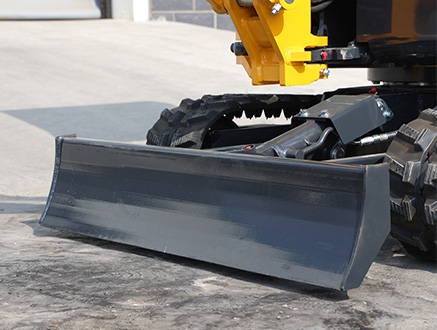

  • Bulldozer-blade Bulldozer-blade
  • Comfortable-cab Comfortable-cab
  • Hydraulic-quick-change-(optional) Hydraulic-quick-change-(optional)

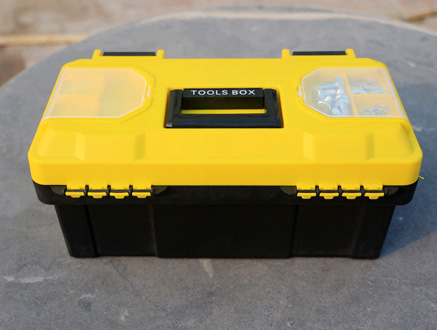

  • Free-toolbox Free-toolbox
about Accessories
  • Rake Rake
  • Ripper Ripper
  • Wide-dipper Wide-dipper
  • Auger Auger
  • Thumb-clip Thumb-clip
  • Log-Grapple Log-Grapple
  • Quick-Hitch Quick-Hitch
  • Tilting-bucket Tilting-bucket
  • Narrow-bucket-30cm Narrow-bucket-30cm
  • Narrow-bucket-20cm Narrow-bucket-20cm
    Slide To See MORE

    JKW-20S Specifications

    Excavator Width

    990/1240mm

    Track Length

    1585mm

    Chassis Ground Clearance

    145mm

    Crawler Material

    Rubber/Steel Track

    Track Width

    230mm

    MAX.Digging Force

    14.8KN

    Gradeability

    ≤35°

    Excavator Height

    2377mm

    Overall Dimension

    3570*990*2250mm

    Engine Model

    KUBOTA D722/KUBOTA D902

    Engine Power

    10.2 KW/2200rpm;11.8 KW/2200rpm

    Turning Radius

    1430mm

    Max.Digging Height

    3540mm

    Max.Dumping Height

    2440mm

    Max.Digging Depth

    2310mm

    Max.Digging Radius

    3840mm

    Max.Vertical Digging Depth

    1910mm

    Fuel Tank Capacity

    18L

    Operating Weight

    2000kg
