Mini Excavators

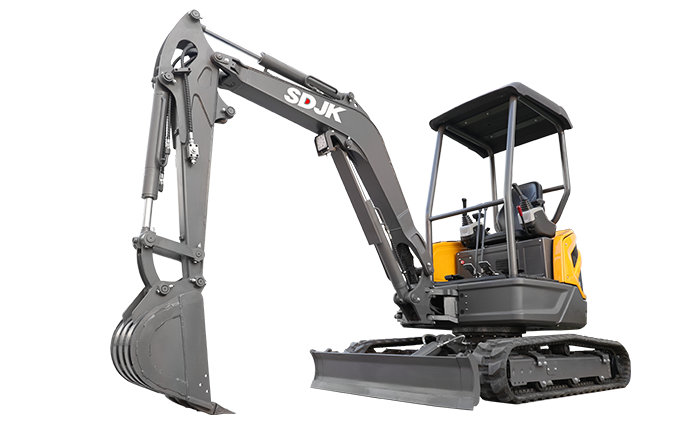

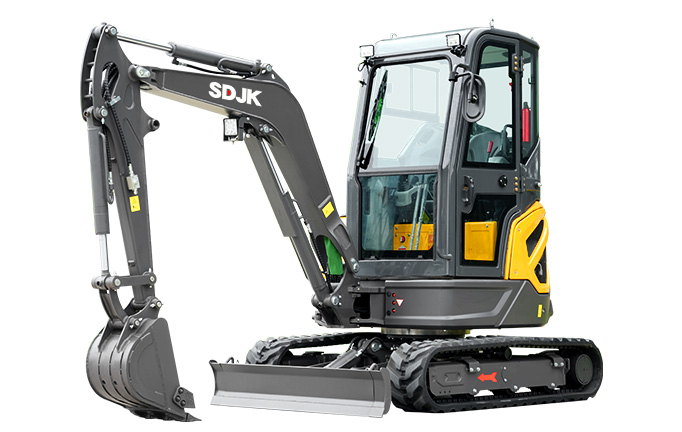

JKW-35 MINI EXCAVATOR

  • Operating Weight
    3500kg
  • Max. digging depth
    2500mm
  • Power
    50HP
  • Machine Video

  • Request a quote

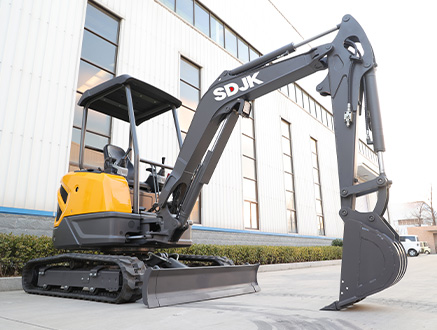

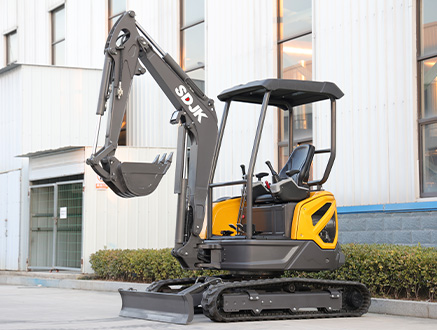

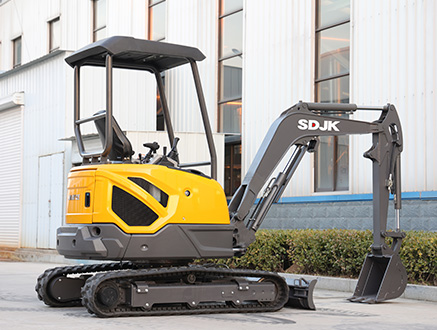

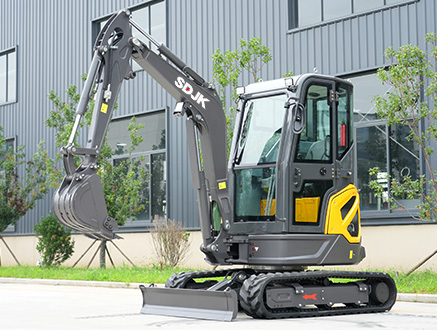

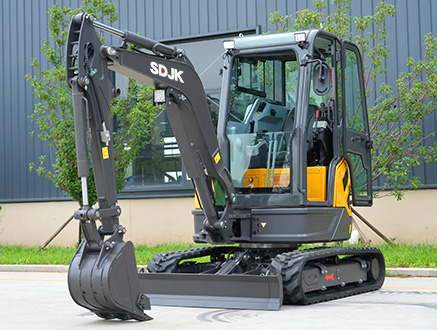

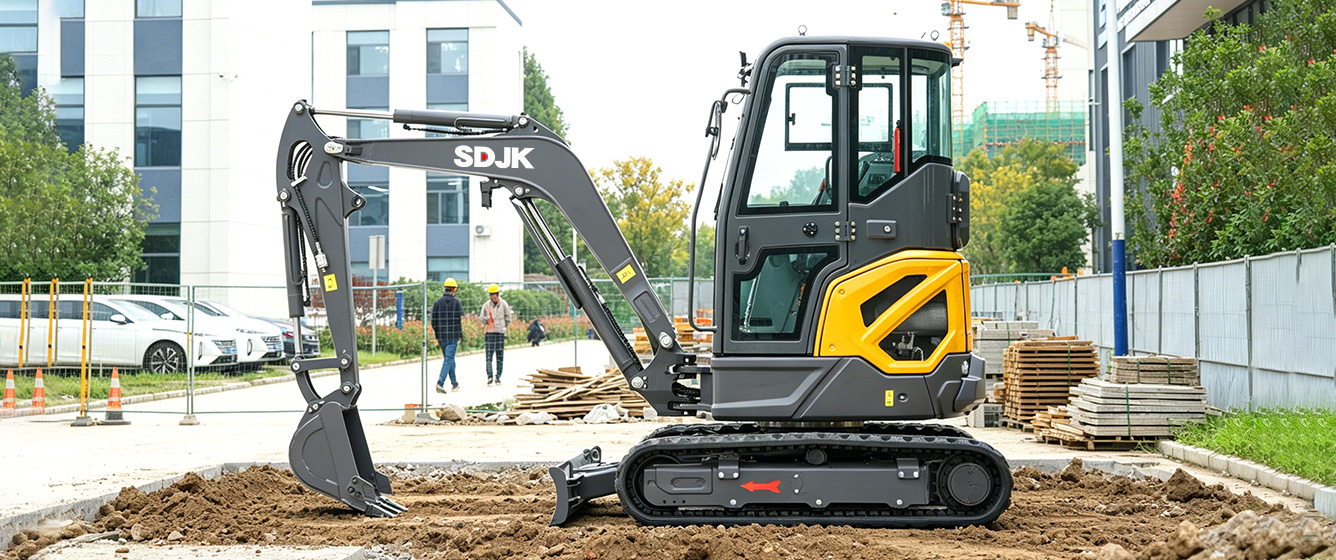

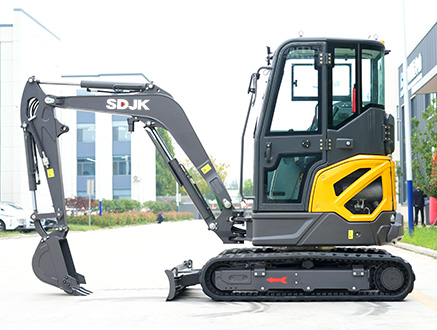

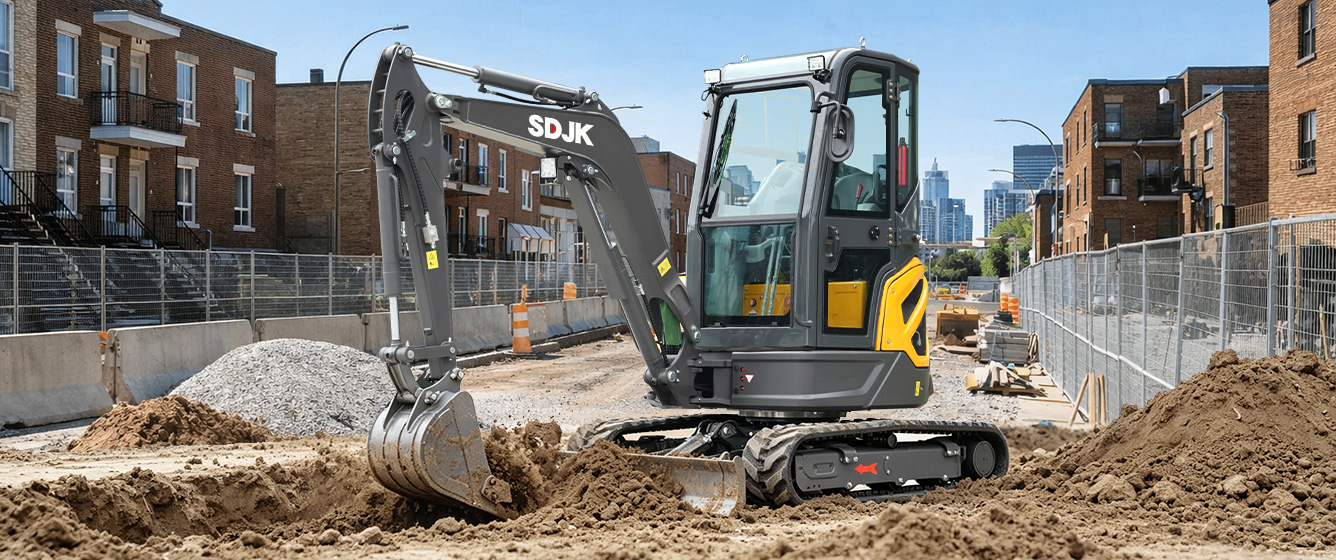

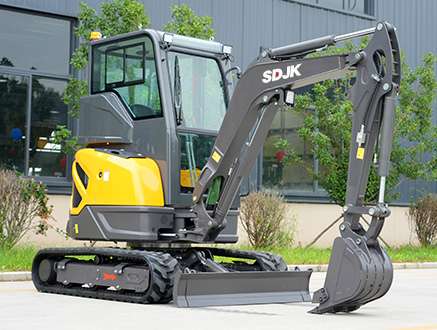

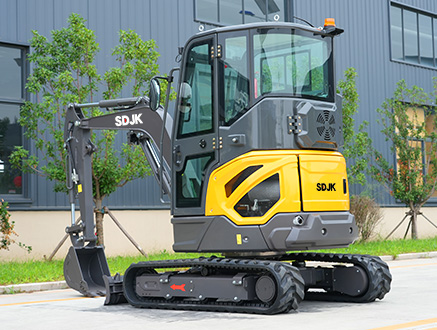

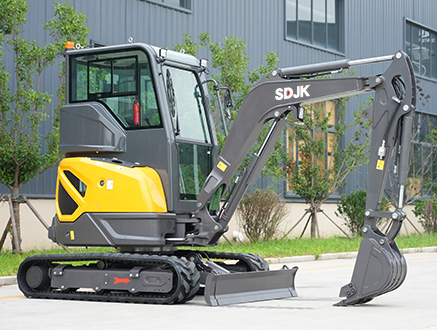

JKW-35 MINI EXCAVATOR

version and dispaly

Specifications for JKW-35 MINI EXCAVATOR

none


About excavator


SDJK is a manufacturer specializing in small excavators in China, which can meet customers' customization needs (supporting customization of engines, logos and body colors). At present, the use of small excavators is becoming more and more routine. Self built houses, farm planting, timber transportation, sewage systems, etc. can be equipped with different accessories to cope with different operation modes and save labor costs. The mini excavator we produce is a machine that can work in a narrow space. Compared with the expensive rental cost, it is more cost-effective to have a excavator made in China.


none


Details of excavator


The excavator has the advantages of flexibility, convenient transition, low cost, low fuel consumption and less damage to the surface. In addition, excavators can also be miniaturized and giant, and have been developing in the direction of high performance, high reliability, multi-function, humanization, environmental adaptability, and energy diversity.

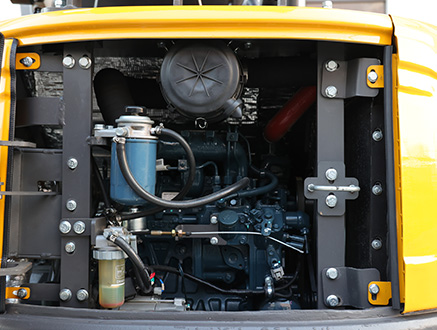

  • Engine-compartment Engine-compartment
  • Hydraulic-cylinder Hydraulic-cylinder

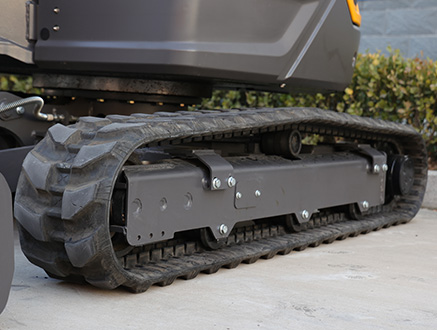

  • Rubber-track Rubber-track

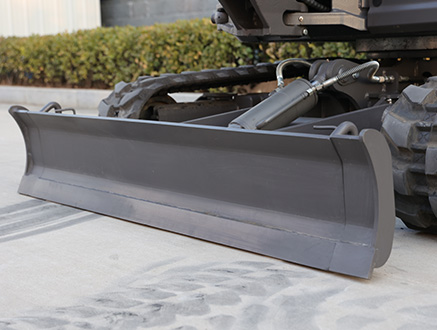

  • Bulldozer-blade Bulldozer-blade
  • Boom-side-sway Boom-side-sway
  • Free-toolbox Free-toolbox
about Accessories
  • Rake Rake
  • Ripper Ripper
  • Wide-dipper Wide-dipper
  • Auger Auger
  • Thumb-clip Thumb-clip
  • Log-Grapple Log-Grapple
  • Quick-Hitch Quick-Hitch
  • Tilting-bucket Tilting-bucket
  • Narrow-bucket-30cm Narrow-bucket-30cm
  • Narrow-bucket-20cm Narrow-bucket-20cm
    Slide To See MORE

    JKW-35 Specifications

    Excavator Width

    1500mm

    Track Length

    2300mm

    Chassis Ground Clearance

    240mm

    Track Width

    250mm

    Transport Length

    4180mm

    MAX.Digging Force

    22.19KN

    Gradeability

    ≤35°

    Excavator Height

    2200mm

    Overall Dimension

    4180*1500*2200mm

    Engine

    XINCHAI 490/KUBOTA V1505

    Engine Power

    36.8kw/2400rpm;18.5kw

    Turning Radius

    1300mm

    Max.Digging Height

    3900mm

    Max.Dumping Height

    2600mm

    Max.Digging Depth

    2500mm

    Max.Digging Radius

    5486mm

    Fuel Tank Capacity

    20L

    Max.Vertical Digging Depth

    2350mm

    Operating Weight

    3500kg
