Mini Excavators

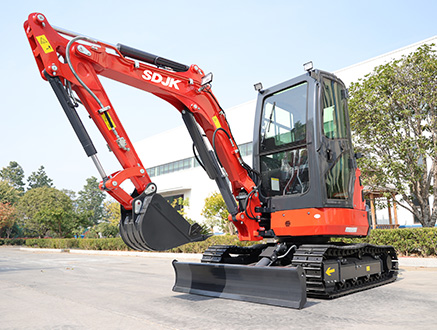

JKW-35S MINI EXCAVATOR

  • Operating Weight
    3500kg
  • Max. digging depth
    2880mm
  • Power
    25HP
  • Machine Video

  • Request a quote
JKW-35S MINI EXCAVATOR

version and dispaly

Specifications for JKW-35S MINI EXCAVATOR

none


About excavator


SDJK is a manufacturer specializing in small excavators in China, which can meet customers' customization needs (supporting customization of engines, logos and body colors). At present, the use of small excavators is becoming more and more routine. Self built houses, farm planting, timber transportation, sewage systems, etc. can be equipped with different accessories to cope with different operation modes and save labor costs. The mini excavator we produce is a machine that can work in a narrow space. Compared with the expensive rental cost, it is more cost-effective to have a excavator made in China.


none


Details of excavator


The excavator has the advantages of flexibility, convenient transition, low cost, low fuel consumption and less damage to the surface. In addition, excavators can also be miniaturized and giant, and have been developing in the direction of high performance, high reliability, multi-function, humanization, environmental adaptability, and energy diversity.

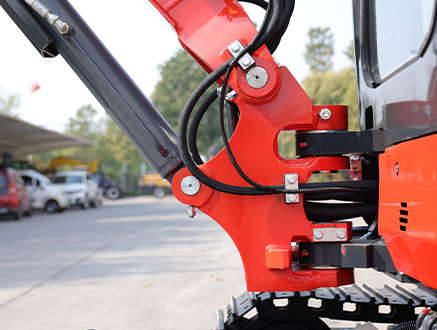

  • Hydraulic-cylinder Hydraulic-cylinder
  • Steel-track Steel-track

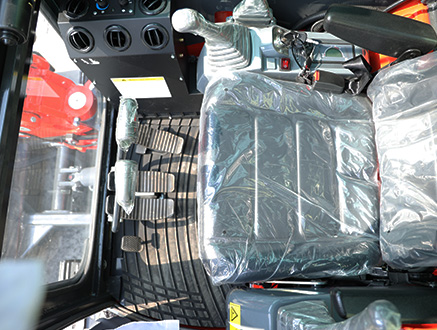

  • Comfort-seats Comfort-seats
  • Bulldozer-blade Bulldozer-blade
  • Boom-side-sway Boom-side-sway

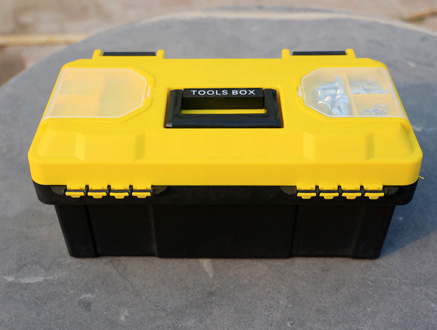

  • Free-toolbox Free-toolbox
about Accessories
  • Rake Rake
  • Ripper Ripper
  • Wide-dipper Wide-dipper
  • Auger Auger
  • Thumb-clip Thumb-clip
  • Log-Grapple Log-Grapple
  • Quick-Hitch Quick-Hitch
  • Tilting-bucket Tilting-bucket
  • Narrow-bucket-30cm Narrow-bucket-30cm
  • Narrow-bucket-20cm Narrow-bucket-20cm
    Slide To See MORE

    JKW-35S Specifications

    Excavator Width

    1500mm

    Track Length

    2100mm

    Chassis Ground Clearance

    290mm

    Crawler Material

    Rubber/Steel Track

    Track Width

    300mm

    MAX.Digging Force

    26.5KN

    Gradeability

    ≤35°

    Excavator Height

    2440mm

    Overall Dimension

    4485*1550*2440mm

    Engine Model

    KUBOTA V1505

    Engine Power

    18.5KW

    Turning Radius

    2035mm

    Max.Digging Height

    4600mm

    Max.Dumping Height

    3175mm

    Max.Digging Depth

    2880mm

    Max.Digging Radius

    4845mm

    Max.Vertical Digging Depth

    2305mm

    Fuel Tank Capacity

    40L

    Operating Weight

    3500kg
